OEM-Level Performance. Guaranteed.

Every KELTEC product is built under our ISO 9001-certified quality system to deliver consistent, reliable performance. Whether you're replacing an OEM filter or sourcing from our full product line, you can expect components that meet or exceed industry standards. When used as intended and serviced properly, we guarantee dependable operation — free from manufacturing defects. If a product issue does occur due to a KELTEC defect, we’ll replace it and make it right. It’s our promise across everything we make.

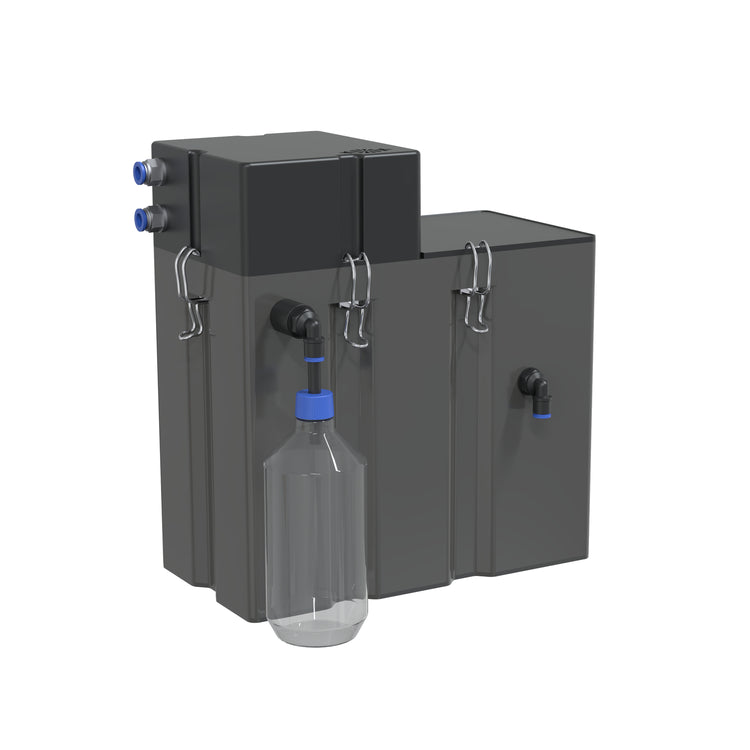

Reduce oil concentrations in compressor condensate - KOWS Series Oil-Water Separator Units

To address these challenges, oil-water separation is not optional—it is a legal requirement in many regions. The KELTEC KOWS Series Oil-Water Separator Units provide a dependable, cost-effective, and environmentally responsible solution. Designed in accordance with ISO 14000 standards, KOWS units reduce oil content in compressor condensate from typical levels of 300–500 ppm to below 10 ppm, allowing facilities to discharge wastewater safely, legally, and with confidence.

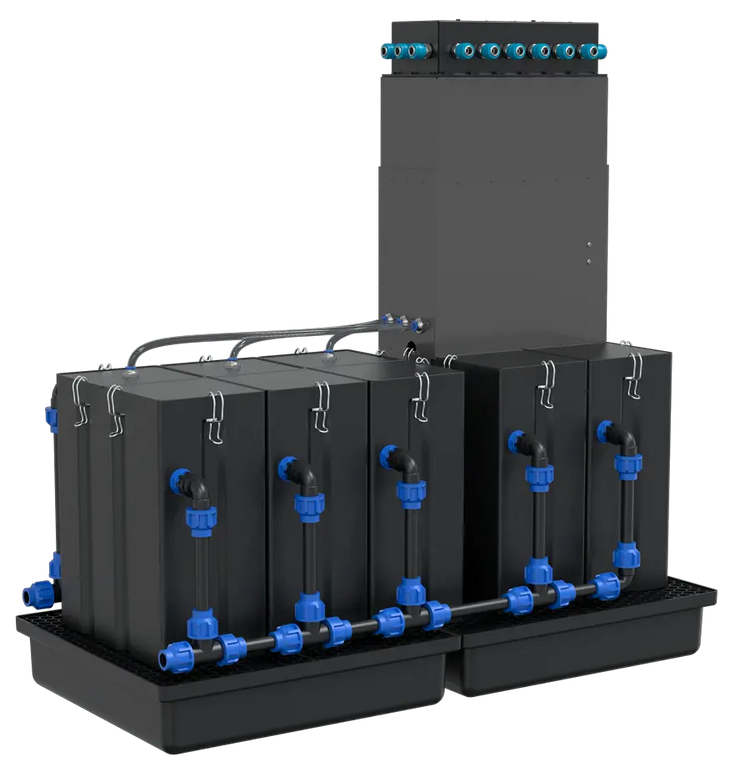

kwos250_.png_webp_40cd750bba9870f18aada2478b24840a

To address these challenges, oil-water separation is not optional—it is a legal requirement in many regions. The KELTEC KOWS Series Oil-Water Separator Units provide a dependable, cost-effective, and environmentally responsible solution. Designedin accordance withISO 14000 standards, KOWS units reduce oil content in compressor condensate from typical levels of 300–500 ppm to below 10 ppm, allowing facilities to discharge wastewater safely, legally, and with confidence.

Top Features & Benefits

Regulatory Compliance – Reduces oil content to <10 ppm, meeting strict wastewater discharge regulations and ISO 14000 environmental standards.
Environmental Protection – Prevents oil contamination of water systems, addressing a critical environmental and legal risk associated with compressor condensate.
High Separation Efficiency – Multi-stage filtration (bulk separation, Mikro-Sep, Mikro-X-Tex, and Mikro-Carb) ensures consistent oil removal from heavily contaminated condensate.
Low Carbon & Eco-Friendly Design – Designed with a low carbon footprint and environmentally responsible oil collection and disposal methods.
Wide Oil Compatibility – Compatible with mineral and synthetic oils, making it suitable for a broad range of compressor applications.
Cost-Effective Compliance Solution – Avoids fines, regulatory violations, and costly environmental incidents while delivering reliable long-term performance.

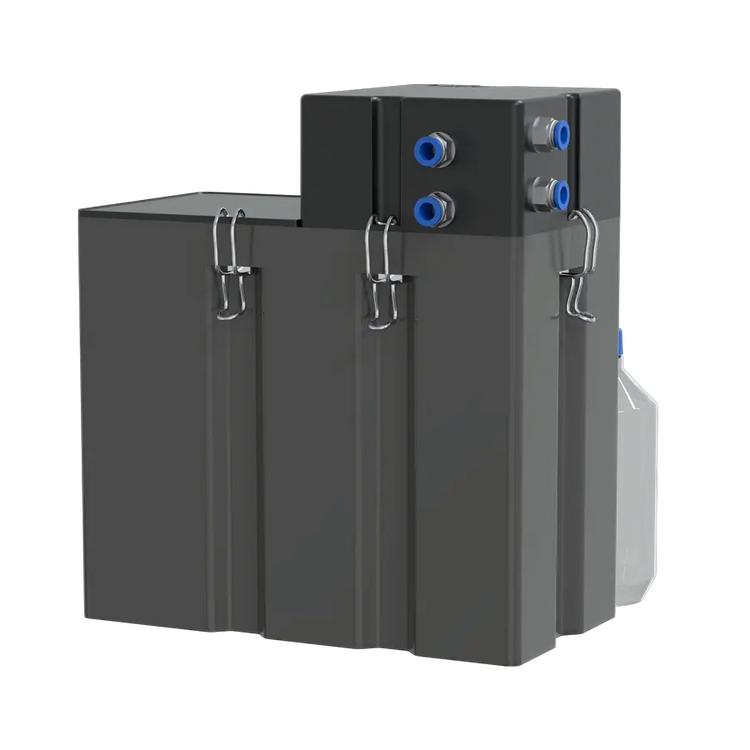

kwos-no-base-back-right_.png_webp_40cd750bba9870f18aada2478b24840a

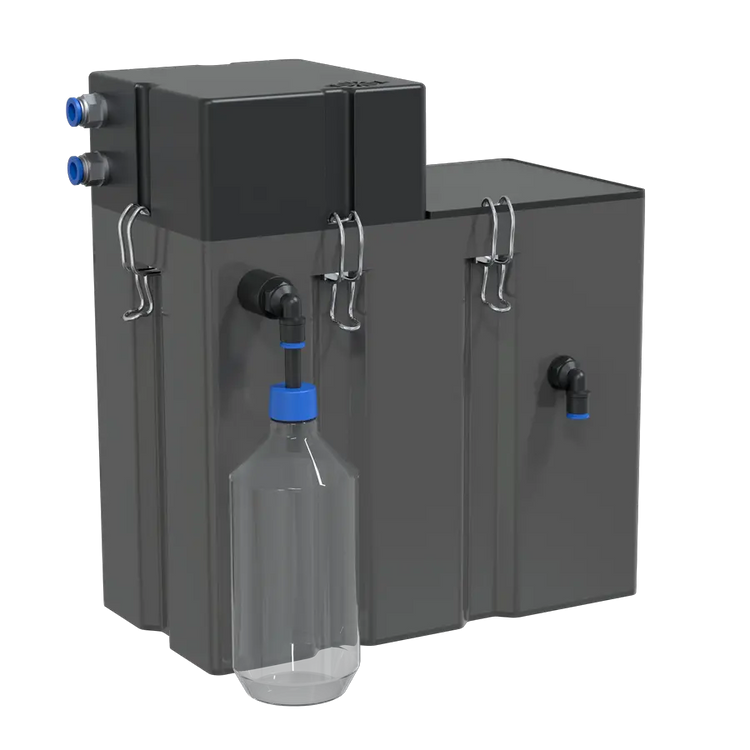

kwos_no_base_front_left_corner_shot_.png_webp_40cd750bba9870f18aada2478b24840a

Drain Options

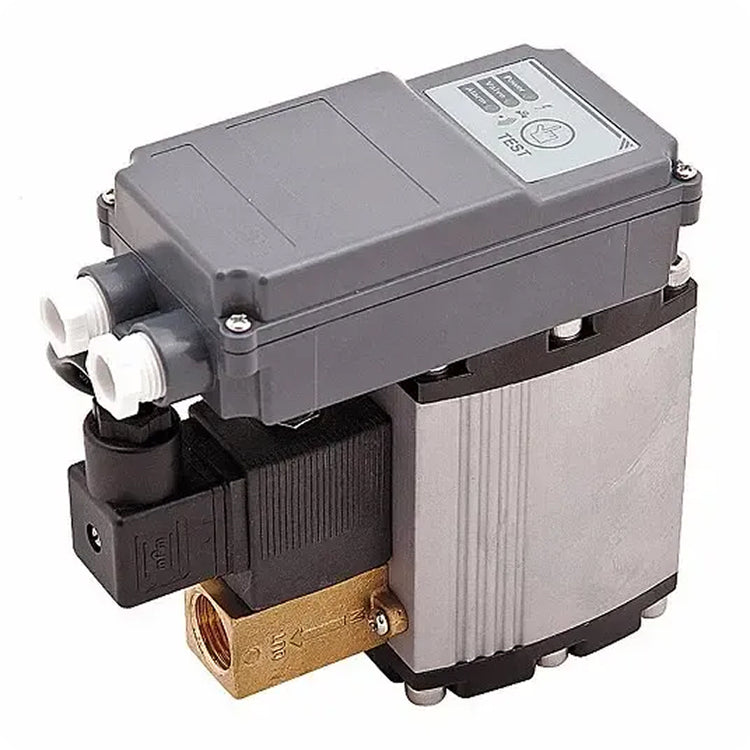

imgi_2_Zero_Loss_Drain_STOCK_image_1_.jfif_webp_40cd750bba9870f18aada2478b24840a_1

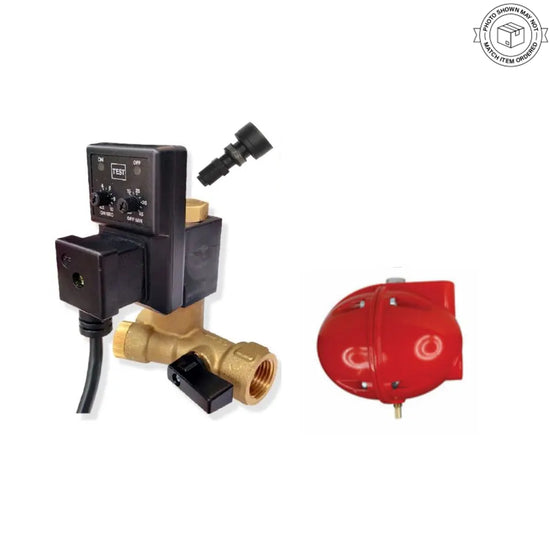

KELTEC Condensate Drain Options

KELTEC offers a range of various condensate drain offerings to support any compressed air system. Drains effectively remove liquid condensate from compressors, receiver tanks, dryers, water separators, and drip legs.

Product Codes:

SDV-ZEROLOSS: Zero-loss electronic solenoid drain valves.
SDV: Electronic timer solenoid drain valves.
CAH-ADMD: Mechanical auto-manual float drain valves.
CAH-ED: Mechanical external zero-loss float drain valves.

ZeroLoss Electronic Solenoid Drains Valves (SDVZEROLOSS)

Removes condensate without losing compressed air.
Level-sensing technology ensures efficient discharge.
Available in four models with flow rates from 175 to 1,750 SCFM.
Power requirements: 90–260 VAC, 50-60 Hz, 1 ph.
1/2" NPT inlet and outlet ports.

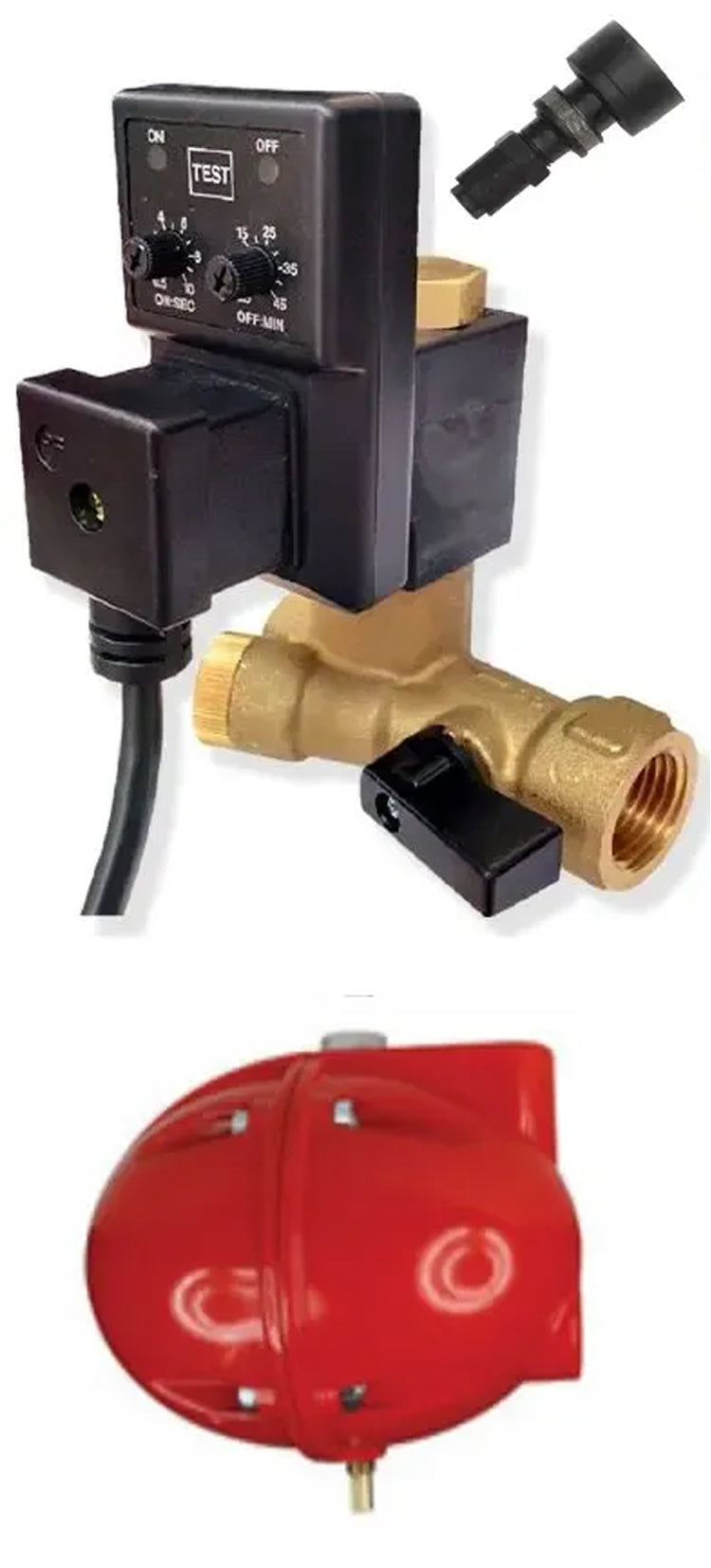

imgi_3_KELTEC_drains_1_.png_webp_40cd750bba9870f18aada2478b24840a_1

Electronic Timer Solenoid Drain Valves (SDV)

Automatic discharge for compressors, receiver tanks, dryers, water separators, and drip legs.
Adjustable timers with up to 10 sec ON and 45 min OFF cycles.
Available in 1/4" NPT and 1/2" NPT inlet and outlet ports.
Available in 115 VAC and 220 VAC 1 ph.
LED indicators show operating status and maintenance needs.
Manual test button clears blockages.

Mechanical Auto/Manual Float Drain Valves (CAHADMD)

Standard on all KELTEC CAH Filter Housings.
Automatic float valve operation easily switches to manual operation.
1/8” NPT outlet port.
Economical drain option provides flexible condensate removal.

Mechanical External ZeroLoss Float Drain Valves (CAHED)

Heavy-duty external drain for removing liquid condensate from collection points.
Available in 1/2” NPT and 1/2" BSP inlet and outlet ports.
Designed for use with CAH-BHF050F bulkhead adapter, to connect drains to KELTEC CAH filter housings and other collection points.

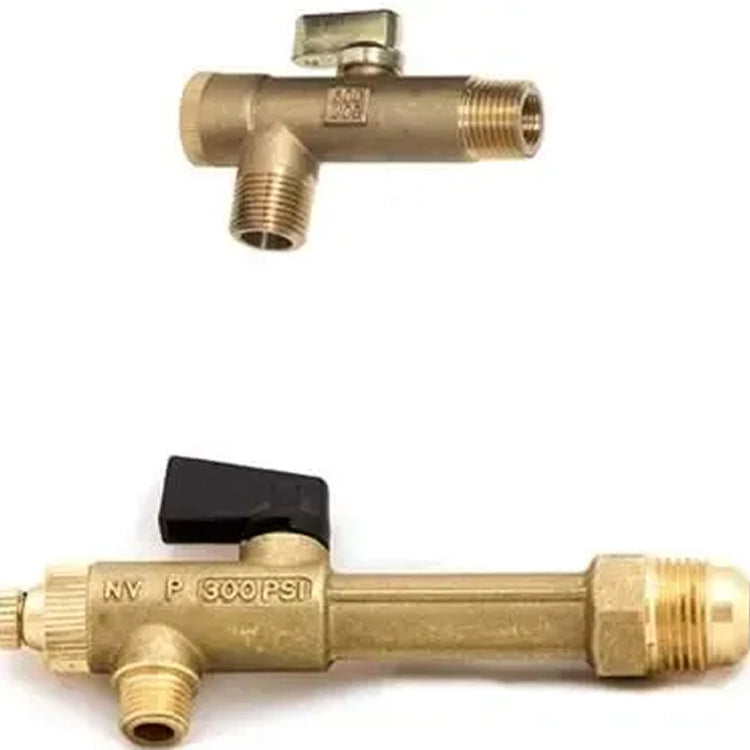

imgi_4_Strainers_.JPG_webp_40cd750bba9870f18aada2478b24840a_1

Ball Strainer Ball Valves

Highquality brass valves with internal strainer filter screens to protect downstream equipment.
Available in various inlet and outlet port sizes, ranging from 1/8” NPT to 1/2” NPT.

Product Codes:

CAH-SV: Strainer Ball Valves.

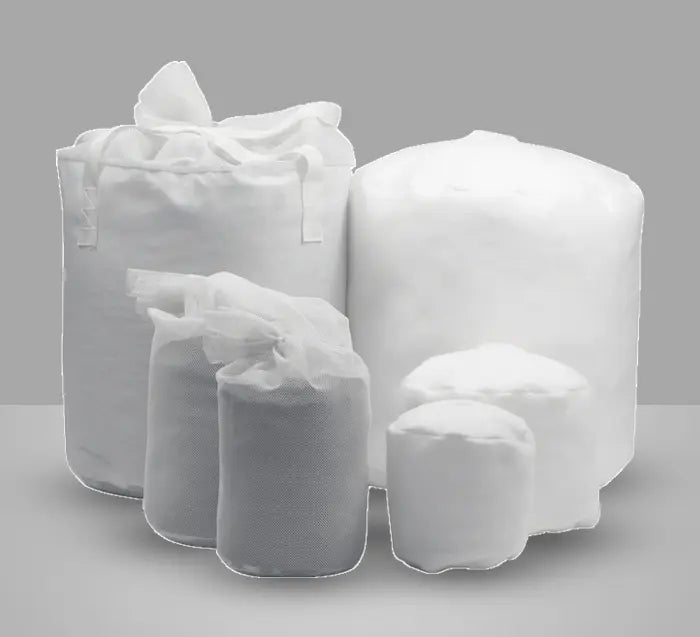

seperatorbags_.jpg_webp_40cd750bba9870f18aada2478b24840a

Separator Bags

Oil‑Water Separator Service Kits

Oil-Water separators require periodic service, which includes replacing the elements and bags. KELTEC offers replacement oil-water separator elements and bags for KELTEC KOWS and nearly all other major brands.

Service kit components use polypropylene, activated carbon, and other filtration medias, to maintain compliance and performance.

Replacement bags and elements are easy to install and designed for long‑term reliability.

SDV-ZERO

mwos160_1_1000px_.png_webp_40cd750bba9870f18aada2478b24840a

Water Separators

KELTEC water separators are designed for the removal of bulk liquid water from compressed air and gas streams, to help protect downstream equipment from rust and corrosion. Unique centrifugal action removes water droplets at low pressure drop for maximum energy savings. Available in 1/4" NPT and BSP to 3" NPT and BSP inlet and outlet port sizes, KELTEC water separators support flow capacities up to 1,294 SCFM. KELTEC water separators include a replaceable auto/manual float drain valve (CAH-ADMD-WS) for reliable condensate discharge.

Product Codes:

KWS: Keltec water separators.
