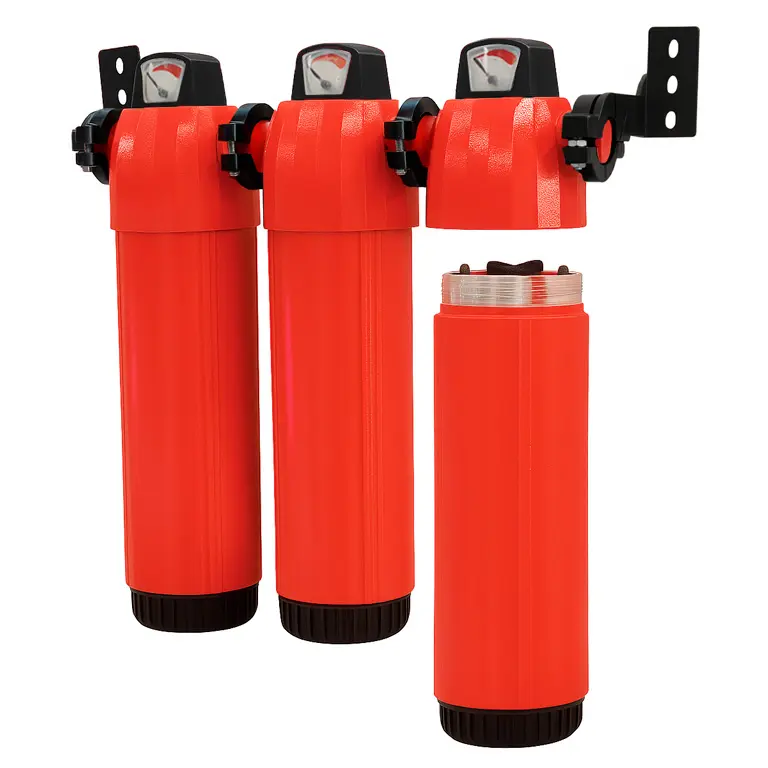

Compressed Air Housings (CAH)

KELTEC Compressed Air Filters have been designed to remove air borne contamination in compressed air stream, delivering energy efficient operation and reliable performance. These air filters provide more comfortable usage for end users with an increased endurance, higher efficiency at lower pressure drop and more port size options.

Available in models with connection sizes ranging from ½” to 3” and covering flow rates of 58scfm up to 1380scfm, KELTEC filters provide the highest level of clean, compressed air with a minimum loss of energy (pressure drop) through the selection of the appropriate grade of borosilicate microglass filtration media.

Key Features

  • CAH-ADMD auto/manual float drain comes standard in each housing
  • Heavy Duty & electronic drain valves are available with bulkhead adapter
  • Head Clamping (CAH-CL) provides serial connection without any extra pipping.
CAH-0147-NPT and KP0147-X
CAH-0147-NPT and KP0147-X
Drain Options
Drain Options

Filter Elements (KP)

The air filters have four (4) ranges of efficiencies, removing contaminants as small as 0.01 micron at up to 290 psi – ¼” to 3” NPT/BSP pipe sizes. A protected auto float drain is standard for optimal and reliable removal of liquid contaminants. Please confirm with customer service which filter element is required for your site.

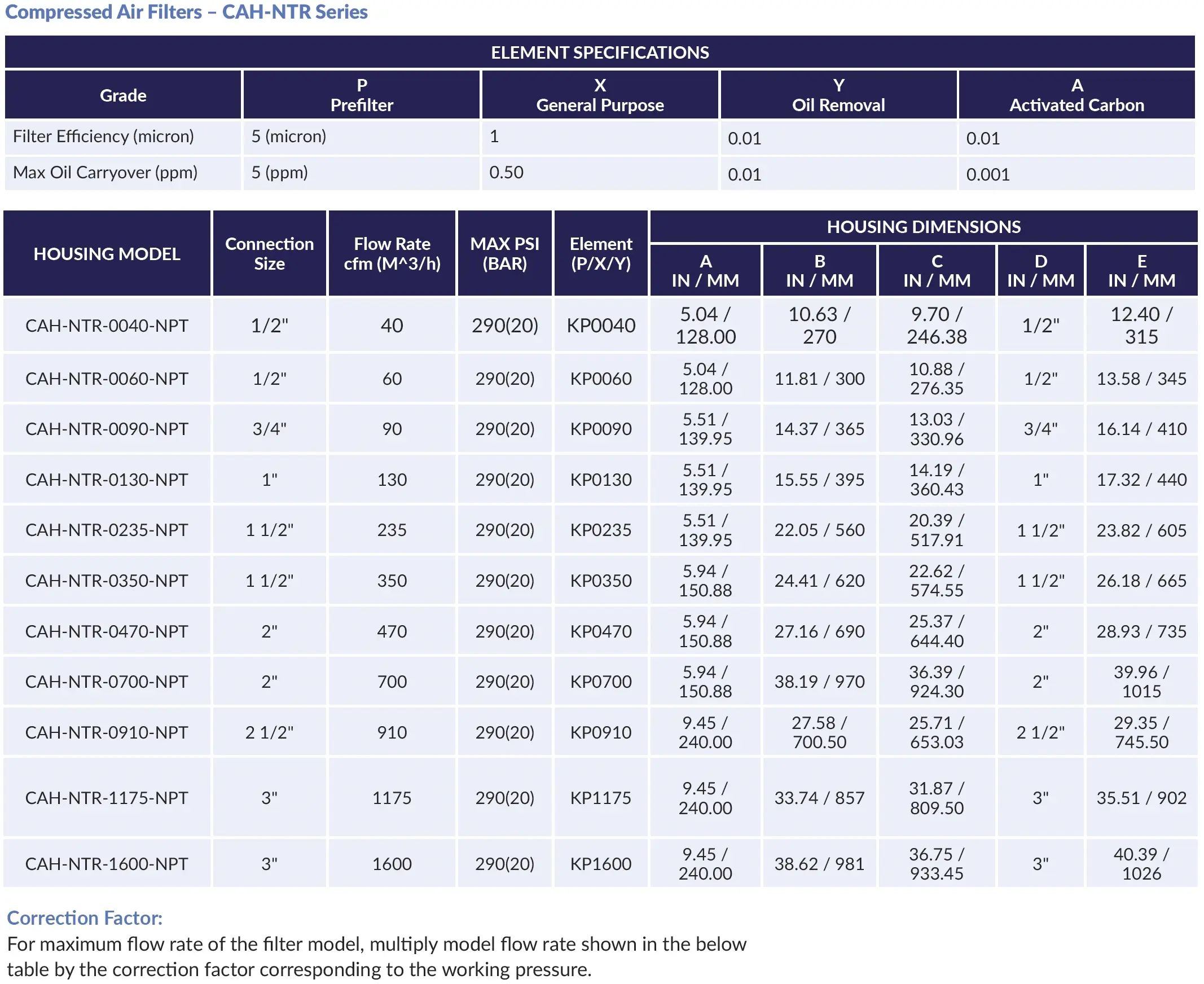

KELTEC Coalescer Tech Data Chart
KELTEC Coalescer Tech Data Chart

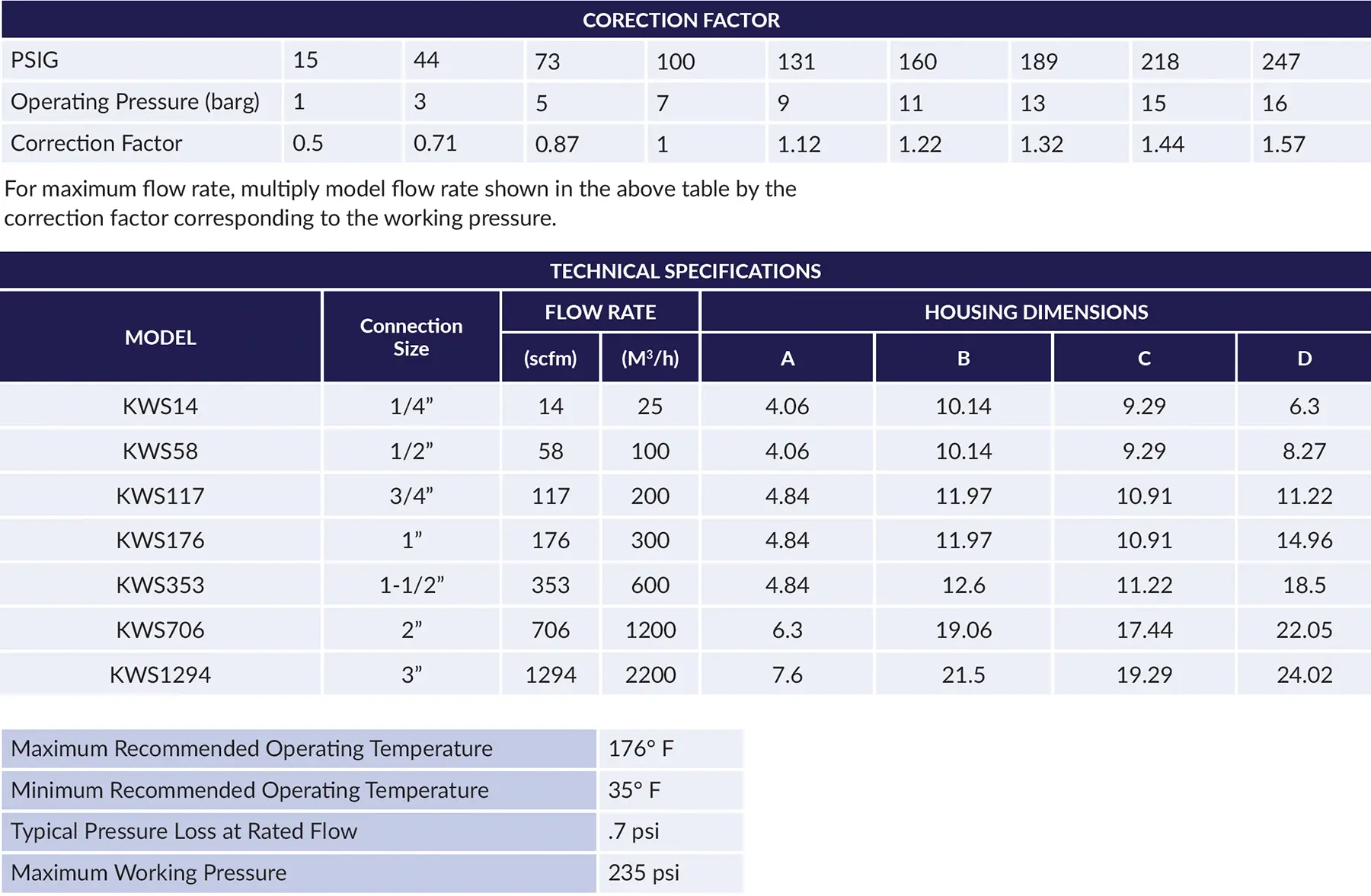

Water Separators (KWS)

If you do not see your needed application here, give us a call, odds are we have what you are looking for.

Keltec has replacement parts for the world's top brands

Over 33,000 original equipment matches for top compressor brands such as:

  • Atlas Copco
  • KAESER
  • Ingersol-Rand
  • & hundreds more!
FILTER CROSS REFERENCE GUIDE

Our Filter Cross Reference Guide is now filterable by OEM Number, KELTEC Item Number and Air Supply Part Number.

Find your Product
Quality

Keltec offers 30+ years of manufacturing top quality, OEM quality products you can rely on. When it comes to quality products, there is no comparison.

Learn More
Shipping Block

All in-stock items that are ordered before 3pm EST ship same day. Items ordered after 3pm EST will ship the following day.

Last Content Update: 06/03/2024
